Detailed description Cable Cutting Winding and binding Machine, Wire Twisting Machine Manufacturing Equipment, Cable Twist Tie Machine, Wire Cable Winding, And Bunding Machine
Description

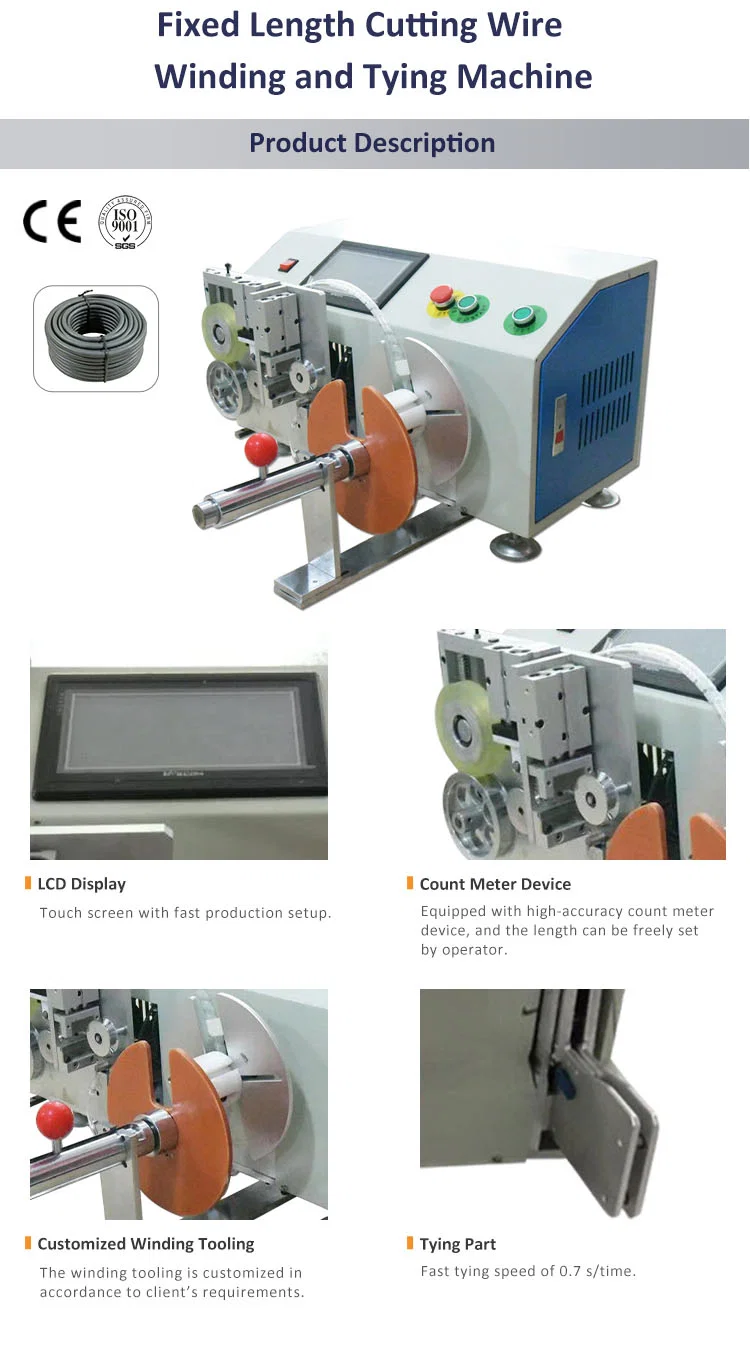

This machine increases the functions of counting meters, splitting, and cutting
based on a winding bundling machine.4 motors (winding motor and twisting
the motor is stepping motor) by PLC with touch-screen control meter length, wire
sending length, cut, and twist automatically. Adjustable turns and winding
speed. It applies to the AC power cord, DC power cord, USB cable, video
cable, and HDMI high-definition cable, Various types of transmission using
encapsulated core twist-tied into bundles can also be used for other use
encapsulated iron truss purposes, such as racks, sanitary hose, and other

industries business
Specification
Model  WPM-5-30
ModelWPM-5-30
Wire diameter1 - 8 mm
Maximum winding length30 meters
Finished product inner diameter50 - 200 mm
Finished product outer diameter< 280 mm
Tying diameter 18 - 45 mm
Cable tie length 120 - 190 mm
Winding speed1 - 13 circles/s
Typing speed0.7 s/time
Power supply110, 220 V (50 - 60 Hz)
Power1500 W
Weight80 kg
Dimension (L * W * H)830 * 300 * 550 mm
